CRUD and REST API

API's

Data

• We now have a database that stores app data
• Users have to control data
  • Manage their profile/setting
  • Make posts
  • Use a shopping cart
  • etc.
• How should users interact with stored data?

Data

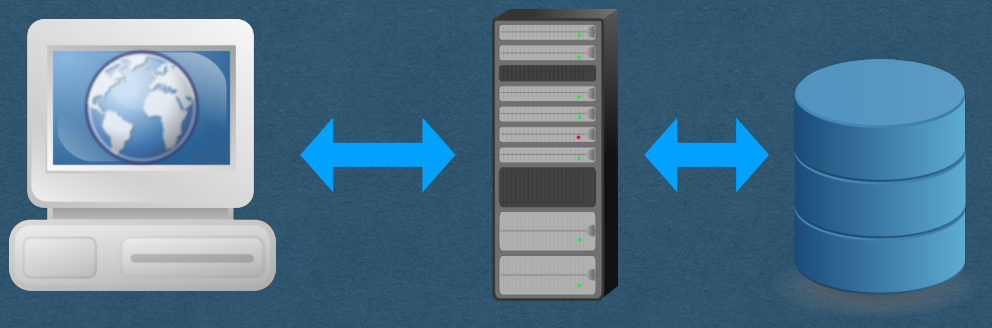

• How do users interact with stored data?

User/Client

Server

Database

Data

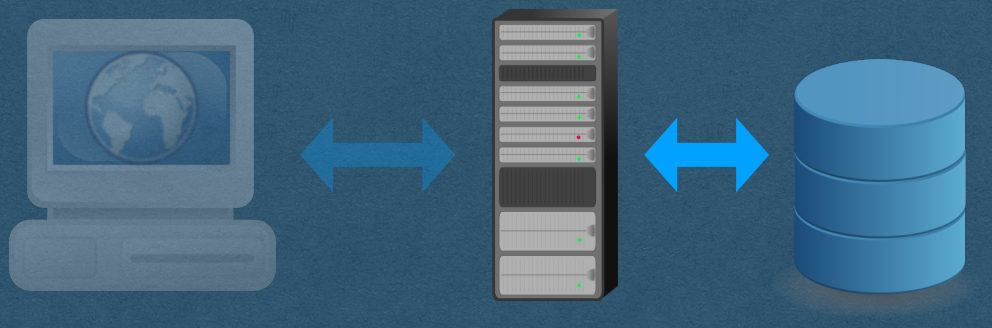

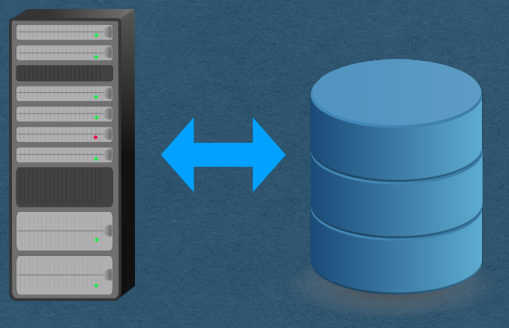

• How does our server interact with stored data?

Server

Database

CRUD

• CRUD is an acronym for the 4 basic operation used to control data
  • Create
  • Retrive
  • Update
  • Delete

CRUD - Create

• Create a new record

db.Exec(`
    INSERT INTO user (email, username) VALUES ($1, $2)
    `, email, username)

CRUD - Create

• When a record is created, it should be assigned a unique id
  • This id will be used to identify the created record
  • The id is typically an auto-incrementing integer
    • First record had id==1, second has id==2, etc
  • Postgres can generate these ids for you using SERIAL

  db.Exec(`
    CREATE TABLE IF NOT EXISTS user (
        id SERIAL PRIMARY KEY,
        email TEXT,
        username TEXT
    )
    `)

CRUD - Retrieve/List

• Retrieve all records from a table
• Retrieving all records is often called List
  • Technically, the acronym is CRUDL when list operations are allowed

SELECT * FROM user

• Retrieve a single existing records

SELECT * FROM user WHERE id=$1

CRUD - Update

• Update an existing record
• Can update all fields except the id
  • It is a unique identifier
  • Changing will break features including links that use the old id

UPDATE user SET email=$1, username=$2 WHERE id=$3

CRUD - Delete

• Delete an existing record
• Record is completely removed from the table

DELETE FROM user WHERE id=$1

CRUD - Delete

• In practice, common to "soft delete"
  • Don't actually delete the data
  • Instead, mark it as deleted
  • Do not allow retrieve/update operations on data marked as deleted
• Soft deletion allows sys admins to perform additional operations
  • eg. User requests to undo an accidental delete
  • Preserves history (Helpful for debugging)
• For your HW, it's fine to "hard delete"

Data

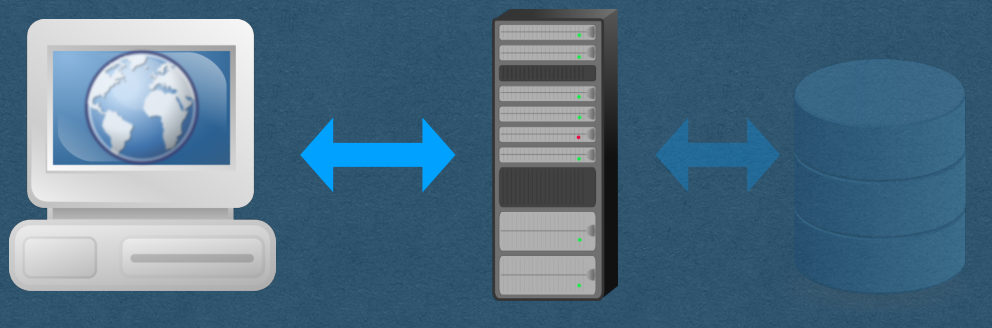

• How do users interact with our server?

User/Client

Server

HTTP Requests Methods

• GET
  • Request data from the server (Retrieve)
• POST
  • Send data to the server (Create)
• PATCH
  • Partially update a resource (Update)
• PUT
  • Replace an existing resource (Update)
• DELETE
  • Delete a resource (Delete)

HTTP - POST v. PATCH v. PUT

• POST, PATCH, and PUT are all used to send data to the server, but with different expectations
• POST
  • Requires the server to process the data
  • eg. Generating the id for a created record
• PATCH
  • Make a partial update to an existing record
  • eg. Update only the content of a chat message, but not the author
• PUT
  • Replace an entire existing record
  • Must be idempotent

HTTP - Idempotent

• When multiple identical HTTP requests are sent
  • If the requests are idempotent, they will have the same effect on the server as sending a single request
• The additional requests will not change the data of the API
• In math terms, if our request is a function f
  • f(f(x)) == f(x)
  • Including any side-effects of f

HTTP - Idempotent

• GET, PUT, and DELETE are idempotent
• GET should not change the data/state of the API
  • Only retrieve data
• PUT will replace the entire record with the data of the request
  • A second identical PUT doesn't change anything since the record was already replaced
• Deleting a record twice has the same effect on the API as deleting the record once

HTTP - Idempotent

• POST is not idempotent
• Since the server is processing the data, there is no implied idempotent property
• eg. Sending 2 identical POST requests to create a record will result in 2 records being created with different ids

HTTP - Idempotent

• PATCH is not idempotent
• In practice, PATCH endpoints are usually idempotent
• There is no expectation that they must be idempotent
• Eg. A record that tracks a counter of how many times it's been updated

RESTful API

• REST -> REpresentational State Transfer
• We'll use HTTP requests to interact with API data
• REST is designed to simplify the way data is used
  • Improve reliability and scalability

REST and CRUD

• User sends HTTP requests that correlate to CRUD operations on the data
• POST => Create
• GET => Retrieve
• PUT => Update
• DELETE => Delete

RESTful API

• REST is fairly loosely defined (No RFC)
  • Or loosely understood
• Typically measured on a spectrum
  • An API can be more/less RESTful
  • "We could do that, but it's not very RESTful"
  • "Let's refactor our API to make it more RESTful"

REST Constraints

• Client-Server architecture and statelessness
  • Both constraints are implicit when using HTTP
• The use of cookies in a RESTful API would be a violation of statelessness
  • Usually accepted in practice (API tokens)

REST Constraints

• Cacheablility
  • Each response must contain caching information
  • Requests should be cached if possible
  • Avoid stale data from being cached

REST Constraints

• Layered-System
  • The API should have the ability to add additional layers between it and the client
  • Ex: Client interacts with a load balancer that delegates to many instances of your API
  • Ex: A reverse proxy server is added that encrypts all traffic (HTTPS)
  • Ex: The client uses a VPN

REST Constraints

• Uniform Interface
  • Resources are defined in the requests
  • The user is given, in a response, enough information to update/delete the resource
  • A request contains all information needed to handle that request
  • The API should be self-contained (No reliance on documentation that cannot be accessed from an API path)

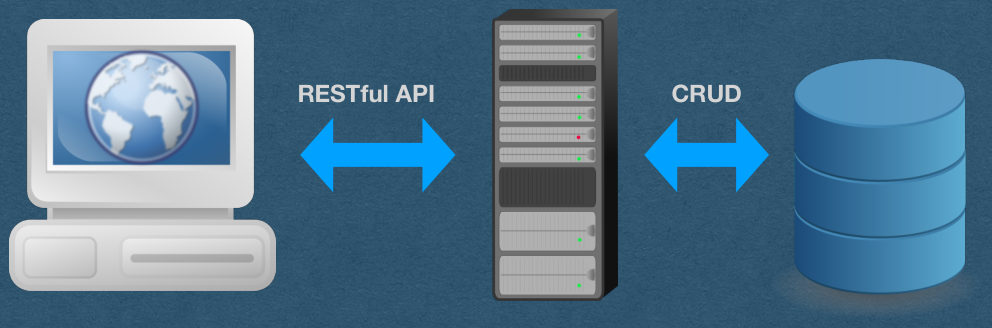

Data

• Users interact with our RESTful API
• API requests correlate to CRUD operations
