Cookies

Cookies

State

• HTTP is stateless
  • Each HTTP request is handled independently
• Only the content of the request is used to generate the response
  • Read the request type (GET/POST), path, headers, and body
  • No other information can be requested from the client

State

• We often want the client to have state
• State is required for authentication
  • Otherwise, each client would have to enter their username/password for every action they take
• We want to remember that a client is logged in
• Subsequent requests are already authenticated
• We cannot do this with HTTP alone

Cookies

• Cookies allow us to "remember" information about a user
• Cookies function through HTTP headers
  • Tell the client to set a cookie using a header in your response
  • Client sends that cookie in a header on all subsequent requests

Cookies

• Since cookies work through HTTP headers:
  • ASCII only

Cookie Headers

• Set-Cookie
  • Use this header in your HTTP response to tell a client to set a cookie
• Cookie
  • The client will send all Cookies with each HTTP request using this header

Set-Cookie

• The Set-Cookie header is used by servers to tell the client to set a cookie
• Cookies are sent as key-value pairs
• Syntax:
  • <key>=<value>
• Example:
  • Set-Cookie: id=X6kAwpgW29M
  • Set-Cookie: visits=4

Set-Cookie

• Only 1 cookie can be set using Set-Cookie
• If you want to set multiple cookies
  • Send multiple Set-Cookie headers
  • Yes, duplicate headers with the same name are allowed
    • *In this course, we won't worry about this in our request parsing code, but you may want to address it in your response class (Technically not required)
    • The browser must handle this when it parses our headers

Cookie

• The header used by clients to deliver all cookies that have been set
• Syntax [Similar to Set-Cookie]:
  • <key>=<value>
  • All cookies in one header
  • Multiple cookies separated by ;
• Example:
  • Cookie: id=X6kAwpgW29M; visits=4

Directives

• We can add directives when setting a cookie
  • After the cookie, use a ; to specify a directive
  • Separate multiple directives with ;
  • ex: Set-Cookie: id=X6kAwpgW29M; <directive1>; <directive2>

Directives - Expires

• Expires
  • The exact time when the cookie should be deleted
  • Must be in the format:
    • <day-name>, <day> <month> <year> <hour>:<minute>:<second> GMT
• Set-Cookie: id=X6kAwpgW29M; Expires=Wed, 7 Feb 2024 16:35:00 GMT

Directives - Max-Age

• Max-Age
  • Set the number of second before the cookie expires
  • Much simpler than setting the expires directive
• Set-Cookie: id=X6kAwpgW29M; Max-Age=3600
  • This cookie expires 1 hour after it is set

Directives - Session Cookies

• If neither Expires nor Max-Age are set:
  • The cookie is a session cookie
    • It will be deleted when the user ends the session
  • ie. The cookie is deleted when the browser is closed
    • Note: Browser. Not tab
• Check your cookies in the browser console to ensure that your directives are set properly (ie. under expires, session cookies will say "session")

Directives - Secure

• Secure
  • Only send this cookie over HTTPS
  • The cookie will not be sent over an HTTP connection
  • Protects against packet-sniffing
    • Using wifi, everyone in wifi range can read your HTTP requests
    • They cannot read your HTTPS requests since they are encrypted
  • If used on your HW server with HTTP, the browser won't send these cookies
• Set-Cookie: id=X6kAwpgW29M; Secure

Directives - HttpOnly

• HttpOnly
  • Don't let anyone read or change this cookie using JavaScript
  • Prevents hijackers from reading/changing your cookies with a JavaScript injection attack (XSS Attack)
  • These cookies are not returned when document.cookie is accessed
  • Can still access these cookies from the browser console
    • An attacker with access to your machine has all your cookies
• Set-Cookie: id=X6kAwpgW29M; HttpOnly

Directives - Path

• Path
  • Specify a prefix that the path must match for the cookie to be sent
• Set-Cookie: id=X6kAwpgW29M; Path=/posts
  • Cookie is only sent when the requested path begins with /posts
• Caution: The Path directive is sometimes automatically added by the browser using the path of the request when the cookie was set
  • You can override this by explicitly setting Path=/

Directives - SameSite

• SameSite
  • Determines when the cookie will be sent on 3rd party requests
  • Lax - Cookie only sent when navigating to your page -and- all 1st party requests
    • The default setting if SameSite is not set
  • Strict - The cookie is only sent on 1st party requests
    • ie. The cookie is only sent to your server when browsing your page
  • None - The cookie is always sent. Requires the Secure directive to also be set
• Set-Cookie: id=X6kAwpgW29M; SameSite=Lax
• Set-Cookie: id=X6kAwpgW29M; SameSite=Strict
• Set-Cookie: id=X6kAwpgW29M; SameSite=None; Secure

Client-Side Cookies

• The client can also set and change their cookies
  • Do not trust the value stored in a cookie!
• If a cookie is important for security
  • Verify its validity
• Client can read/set cookies with JavaScript (Unless HTTPOnly is set)
  • So can attackers!
• Access cookies with document.cookie

Tracking Users

Tracking User Sessions with Cookies

• We often want to know when multiple requests are sent by the same user
  • Eg. A chat where a user sends multiple messages that should all contain the same "username"
• To accomplish this:
  • When they send their first message, create a profile for the user that will store all information about them in a database
  • Generate a random token that is both stored in the database AND set as a cookie for the user
  • Whenever you receive a request, lookup the token in your DB to retrieve the user's profile

User Sessions

sequenceDiagram
  participant Browser as Browser (Front End)
  participant Server as Web Server (Back End)
  participant Database as Database
  Browser->>Server: 1. Request HTML
  Server->>Browser: 2. Sends HTML
  Server->>Database: 3. Sent the token awerfoi34hj98gfq3nhf9834hf19834uhf198p34fh1o3ig1h9834fh19384fh134f

flowchart LR
  Client -->|HTTP request| Server
  Server -->|HTTP response| Client

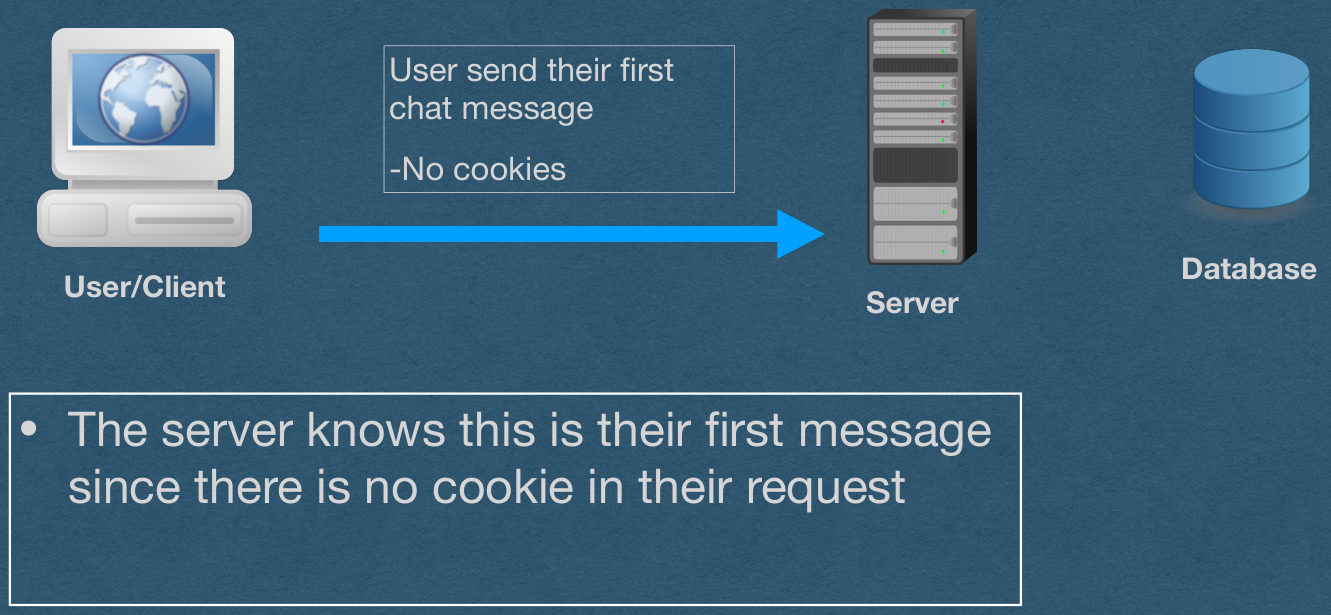

User send their first
chat message

-No cookies

Database

User/Client

Server

• The server knows this is their first message since there is no cookie in their request

User Sessions

Username:
Guest-r8d

Token: fd933a6e-
b4c6-4636-b046-
ac8b8d617792

Database

User/Client

Server

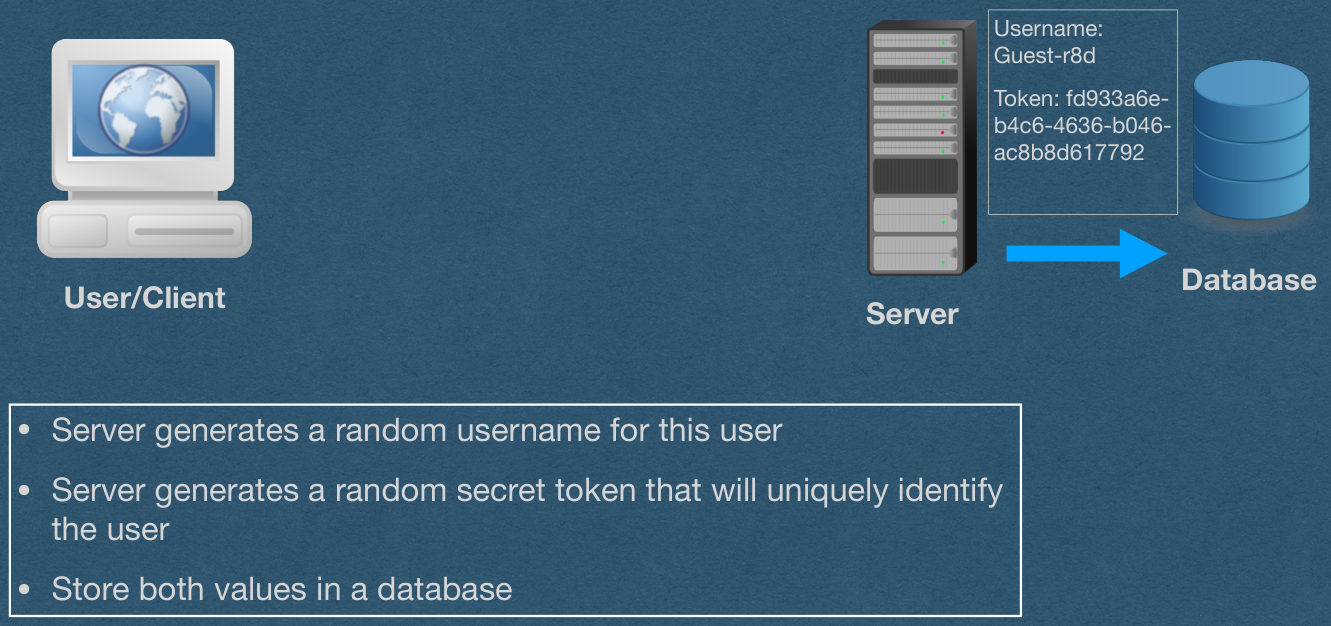

• Server generates a random username for this user
• Server generates a random secret token that will uniquely identify the user
• Store both values in a database

User Sessions

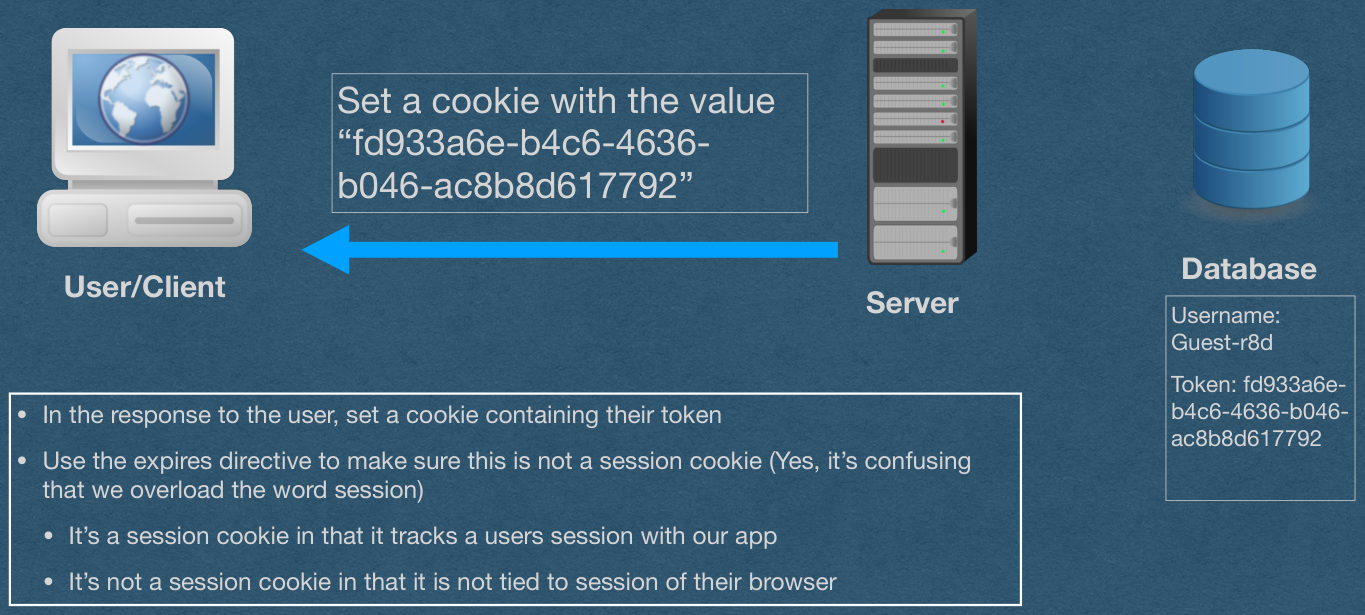

Set a cookie with the value
"fd933a6e-b4c6-4636-
b046-ac8b8d617792"

Database

User/Client

Server

Username:
Guest-r8d

Token: fd933a6e-
b4c6-4636-b046-
ac8b8d617792

• In the response to the user, set a cookie containing their token
• Use the expires directive to make sure this is not a session cookie (Yes, it's confusing that we overload the word session)
  • It's a session cookie in that it tracks a users session with our app
  • It's not a session cookie in that it is not tied to session of their browser

User Sessions

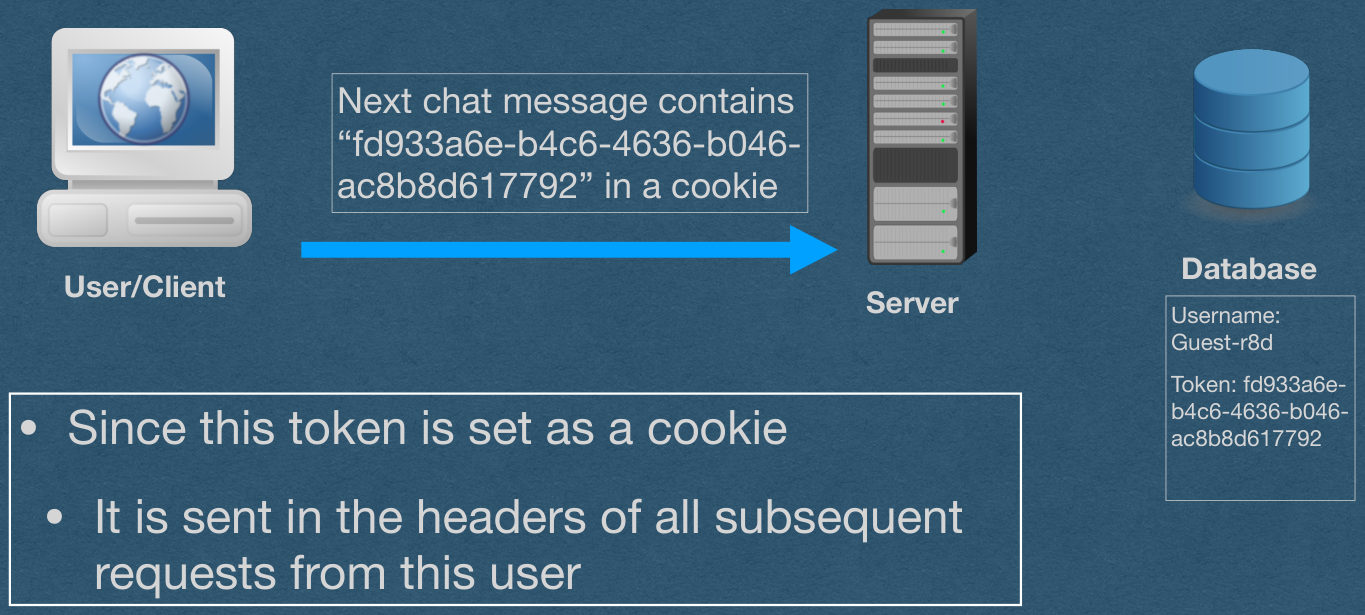

Next chat message contains
"fd933a6e-b4c6-4636-b046-
ac8b8d617792" in a cookie

Database

User/Client

Server

Username:
Guest-r8d

Token: fd933a6e-
b4c6-4636-b046-
ac8b8d617792

• Since this token is set as a cookie
  • It is sent in the headers of all subsequent requests from this user

User Sessions

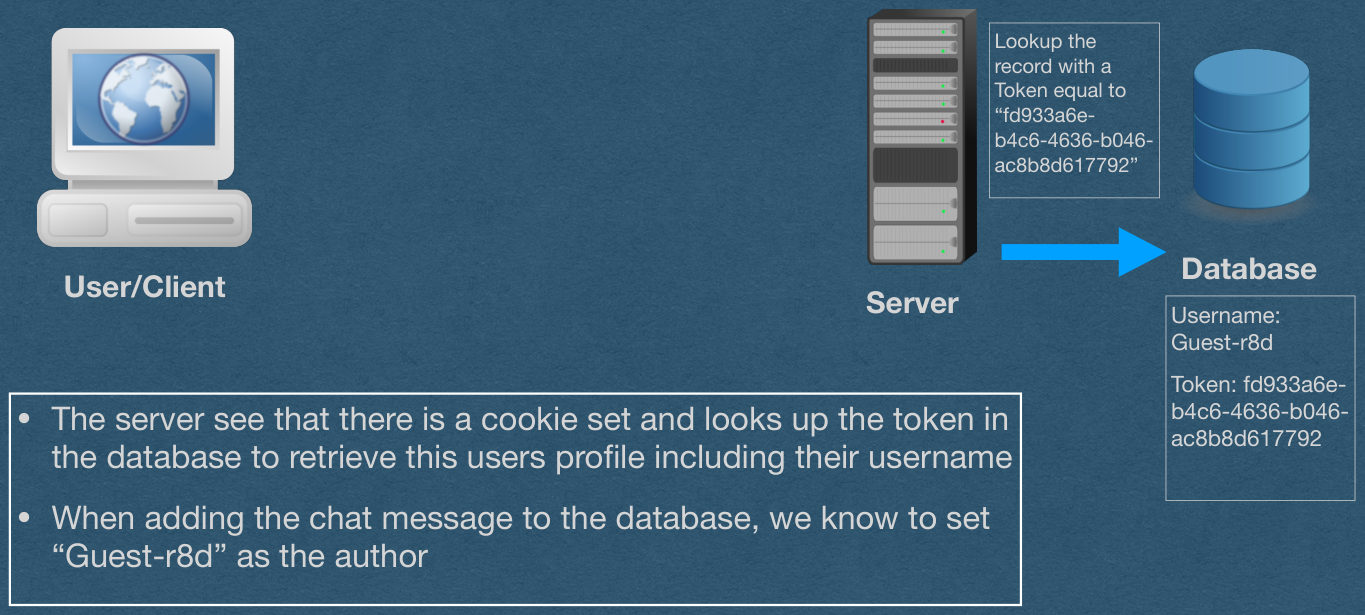

Lookup the
record with a
Token equal to
"fd933a6e-
b4c6-4636-b046-
ac8b8d617792"

Database

User/Client

Server

Username:
Guest-r8d

Token: fd933a6e-
b4c6-4636-b046-
ac8b8d617792

• The server see that there is a cookie set and looks up the token in the database to retrieve this users profile including their username
• When adding the chat message to the database, we know to set "Guest-r8d" as the author

User Sessions

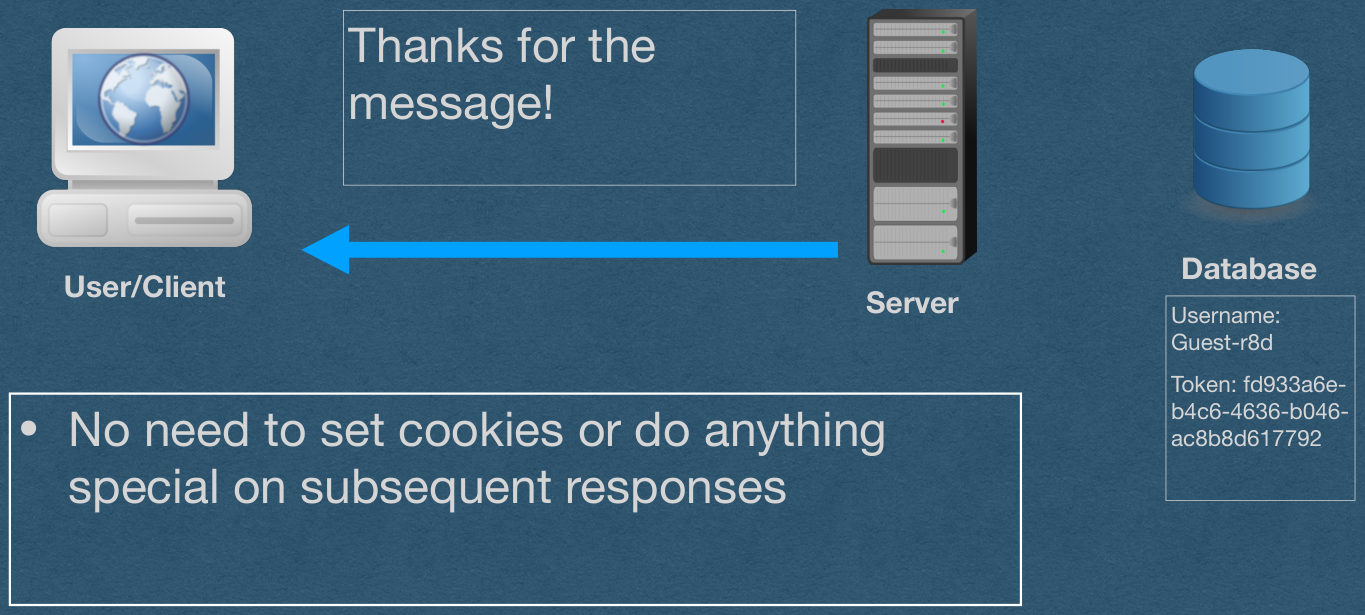

Thanks for the
message!

Database

User/Client

Server

Username:
Guest-r8d

Token: fd933a6e-
b4c6-4636-b046-
ac8b8d617792

• No need to set cookies or do anything special on subsequent responses

User Sessions

• With multiple users:
  • Each user has a different username and token
  • The tokens are all secret so users cannot steal each others identities
  • Usernames are public and displayed to all users in the chat
• Server identifies each user based on their token cookie

Further Reading

• RFC6265 - Cookies
• Directives Overview
• Date Formatting
